Movable 4-Post Open Frame Server Rack

NECABLES > Products > Others > Cabinet/Rack > Movable 4-Post Open Frame Server Rack

Product：Movable 4-Post Open Frame Server Rack

Model No.：110304

Description：This Movable 4-Post Open Frame Server Rack is an ideal solution for space constranied or cost conscious 19-inch rack mount network applications

Specifications：

  1. Ajustable depth
    Depth adjustable,support large equipment on depth adjustable shelves
  2. High cabling capacity
    Many cable entry hole at all side of rack
  3. Loading capacity
    Static loading capacity up to 400 kgs
  4. Moving Conveniently
    4 pcs heavy duty castors to roll out
  5. Less shipping costs
    Can be shipped by CKD package(completely knock-down)
  6. Color: RAL9005 and RAL7035
  7. RoHS and REACH Compliant
  8. Price: click to inquire

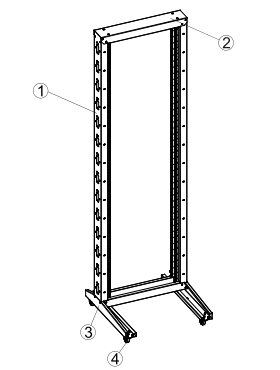

Components：

S/N Name Quantity（pcs）
1 pole 4
2 honrizontal beam 2
3 plinth 2
4 2″heavy duty castor(2pcs with brake) 4
5 Top connection part 4

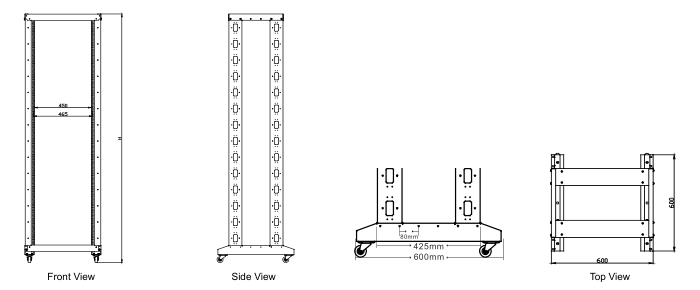

Dimensions：

Model Capacity Dimension(W*D*H mm) CKD Packing Dimension
(W*D*H mm) Volume(CBM)
110304A 22U 600*600*1187 615*250*1130 0.174
110304B 32U 600*600*1631 615*250*1575 0.242
110304C 37U 600*600*1854 615*250*1795 0.276
110304D 42U 600*600*2076 615*250*2020 0.311
110304E 47U 600*600*2298 615*250*2240 0.344
